Keypads & Prox Readers

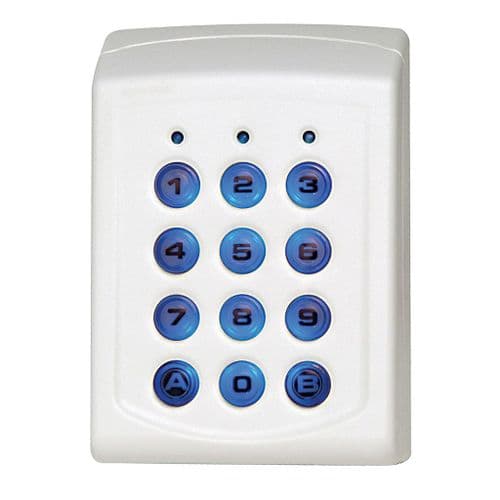

The Videx 1000-Code Surface-Mount ABS Keypad is a standalone access control solution suitable for both internal and external use. It supports up to 1,000 unique user PIN codes (1 to 8 digits), making it ideal for larger residential, educational, or commercial environments.

Encased in a robust ABS plastic housing for surface mounting, the keypad features durable backlit buttons, with clear visual and audible feedback for each entry. Rated to IP65, it performs reliably even in harsh weather conditions.

For flexible integration, it includes:

• Two dry contact relay outputs with push-to-exit inputs
• Programmable relay timer (1-99 seconds or latching mode)
• RS-485 BUS interface for expansion with remote relays or accessories

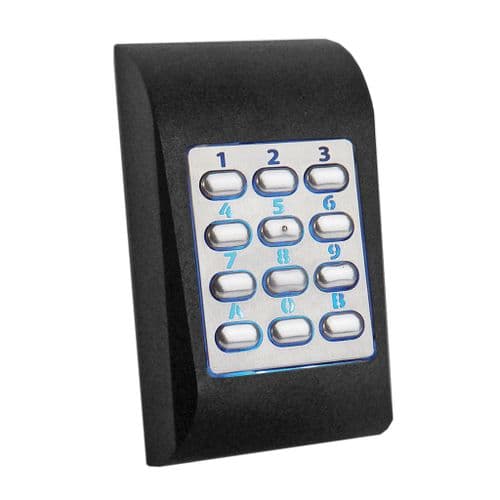

The Videx MTPADPBK-EH-SA is a compact, IP65-rated standalone access control device that combines a backlit keypad with a proximity card reader in a robust matt black ABS housing. Ideal for schools, commercial buildings, housing complexes, and healthcare settings, it offers flexible dual-mode access using PIN, card, or both.

Supports up to 999 user credentials, including codes, cards, or combined PIN + card authentication ideal for varying security levels.

Reads both EM4002/4100 and 125 kHz HID proximity formats, ensuring compatibility with popular card technologies.

Equipped with a built-in dry-contact relay output and a tamper switch input for enhanced security monitoring.

Features RS-485 bus expansion, enabling extra relay outputs via remote I/O modules for larger system integration.

Delivers blue backlit keys, integrated visual status LEDs (behind keys 1, 2, and 3), and an audible beeper for clear user interaction.

Energy-efficient and installation-friendly, running on 1224 V AC/DC, with low current draw perfect for both indoor and outdoor use.

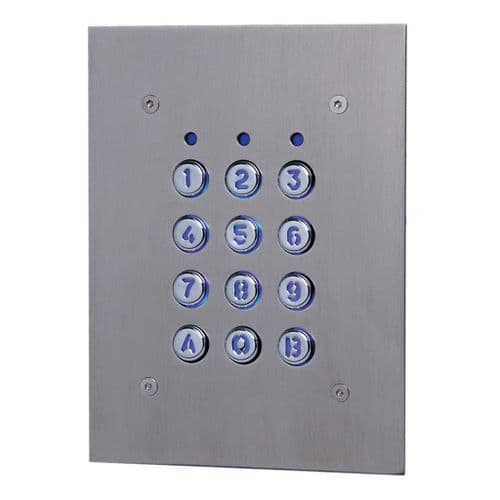

The Videx 8902/F is a secure, vandal-resistant flush-mount keypad designed for high-capacity access control. Built from 316-grade brushed stainless steel with durable blue backlit buttons, it delivers both strength and visibility in demanding indoor or outdoor environments.

Supporting up to 1,000 unique user codes (4-8 digits), each code can be programmed to operate either of the two relays, or both, allowing flexible access configurations. The keypad includes two dry-contact relay outputs, each with its own push-to-exit (PTE) input for seamless integration with access systems.

Each relay can be programmed for 1-99 seconds activation or set to latching mode when required, providing timed or continuous operation. Designed for efficiency, the unit operates on 1224 V AC/DC with a maximum current draw of 70 mA.

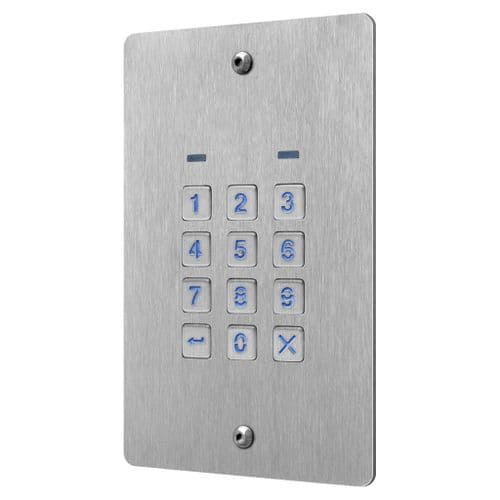

The Videx 8901/F is a robust, stainless steel flush-mount keypad designed for secure and reliable access control. Built from 316-grade brushed stainless steel with illuminated blue backlit keys, it offers both durability and high visibility, making it suitable for demanding indoor or outdoor installations.

This unit supports three unique access codes (4-8 digits), each assigned to one of three relays ideal for multi-zone or multi-user control. Each relay is programmable with a timer from 1-99 seconds or set to latching mode. The first relay also includes a push-to-exit (PTE) input for seamless integration with egress systems.

Designed to withstand tough environments, the keypad is IP65 rated against dust and water, while operating efficiently on 1224 V AC/DC with a maximum current draw of 70 mA. Programming is simple via the keypad itself, with both LED indicators and audible feedback for confirmation.

The Videx 8902/S is a robust, standalone digital keypad designed for high-capacity access control. Housed in brushed stainless steel with blue backlit buttons, this vandal-resistant keypad is built for durability and ease of use in both indoor and outdoor environments. It supports up to 1,000 unique user codes (48 digits), each individually assignable to either of the two relay outputs or both for flexible access configurations.

Featuring two relay outputs, each with its own push-to-exit (PTE) input, the keypad allows versatile integration and dual access paths. Relay timers are fully adjustable from 1 to 99 seconds, with an optional latching mode when timer is set to 00. The unit operates on 1224 VAC/DC with a low current draw, making it energy-efficient and easy to power.

Visual clarity and user feedback are front and centreblue backlit buttons with adjustable brightness, paired with both visual and audible signals during entry and programming, ensure clear interaction in any lighting. Available in both surface mount and flush mount formats, the 8902 Series combines high user capacity, strength, and flexibility in one elegant package.

The Videx 8901/S is a robust, surface-mounted, vandal-resistant keypad engineered for secure access control. With its sleek 316-grade brushed stainless steel finish and adjustable blue backlit buttons, it provides excellent visibility and durability-ideal for outdoor environments or high-traffic areas.

Capable of storing three unique codes (one per relay), it offers precise access options across three dry-contact relay outputs. Each relay is programmable from 1 to 99 seconds, or they can be set to latching mode, and are protected with adjustable back-EMF safeguards. Two of these relays include 0 V push-to-exit (PTE) inputs for added integration flexibility, while the unit operates efficiently on 1224 V AC/DC power with a maximum current draw of 70 mA.

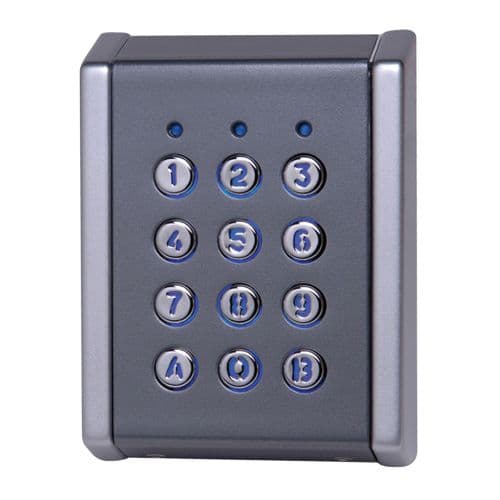

The Videx EX6 Series offers a robust, standalone keypad solution suitable for both indoor and outdoor installations, rated IP65 for reliable access control in even the harshest environments. These keypads support up to 1,000 unique user codes (1-8 digits), making them ideal for schools, offices, multi-occupancy premises, and commercial facilities.

Available in a range of durable housing options from surface-mounted ABS plastic to sleek moulded aluminium, and even vandal-resistant brushed stainless steel models.

Equipped with elegant blue backlit keys (in plastic or metallic finish) and clear visual and audible feedback for entries and programming.

Designed for flexibility and expansion includes two dry-contact relays, dual push-to-exit inputs, and supports RS-485 BUS connection to expand up to 10 relay outputs using external I/O boards.

Built for resilience, featuring tamper detection, UV and dust resistance, and high operational longevity.

Part of the robust Videx EX6 Series, the EX6M-102A offers a sleek, vandal-resistant, flush-mount design with a durable A304 brushed stainless steel faceplate perfect for high-traffic or exposed environments. Built to IP65 standards, it ensures reliable performance, whether installed indoors or outdoors.

Supporting up to 1,000 unique user PIN codes (1-8 digits), this keypad delivers excellent user capacity for residential, educational, or commercial applications. It features two dry-contact relays, a programmable relay timer (1-99 seconds or latching), and an expandable RS-485 BUS interface for integrating additional relay outputs via I/O boards like RB0408 or RU2.Designed to provide both feedback and security, it includes blue backlit metallic buttons and visual/audible indicators, plus tamper protection to guard against unauthorised access.
