Hotron HR900
Product Code: STR-HOT0314

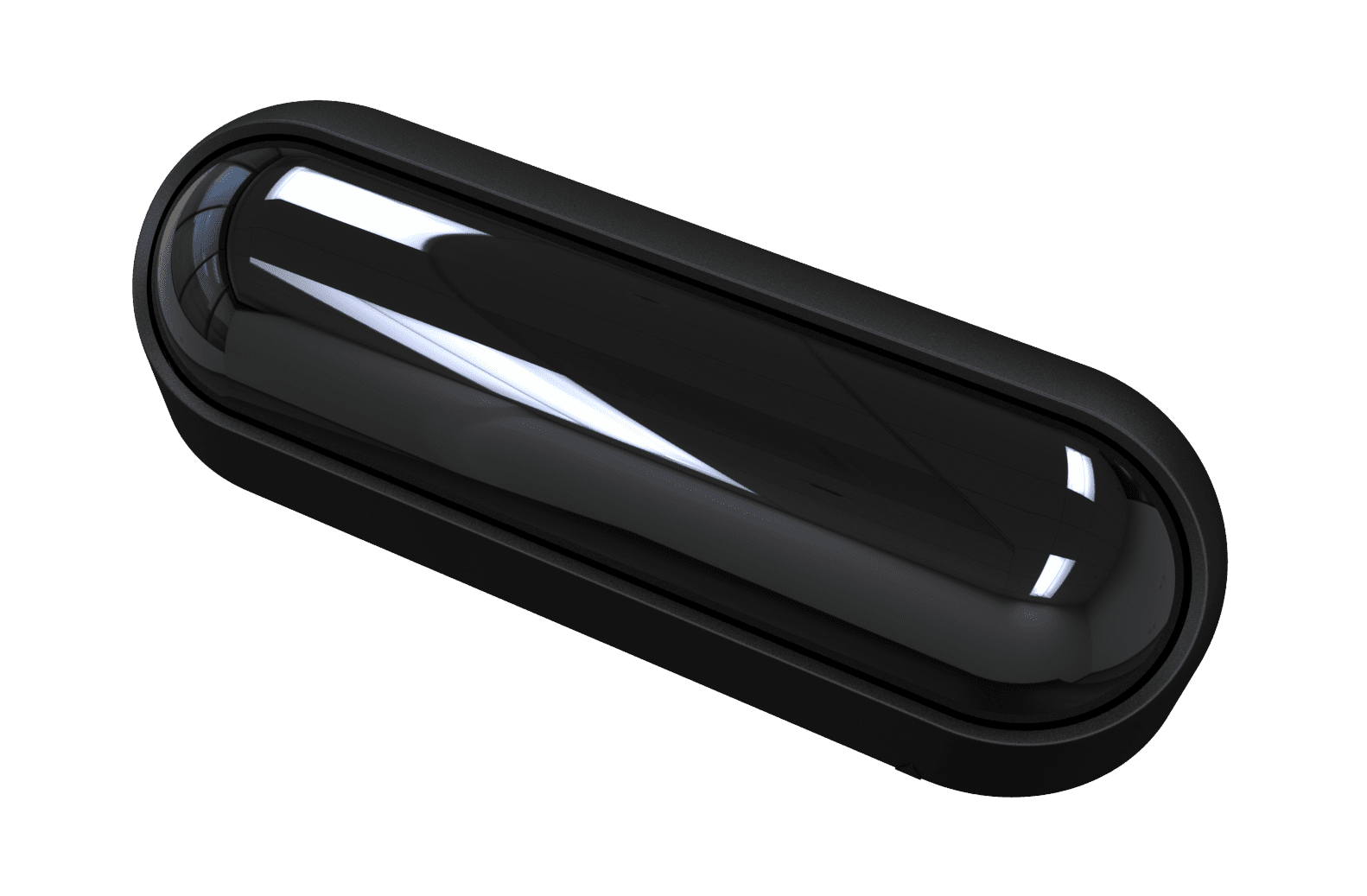

The Hotron HR900 is a slim automatic door activation sensor utilising microwave technology. Its compact dimensions of 130mm (W) x 45mm (H) x 34mm (D) make it suitable for even the narrowest door operators. The sensor employs unidirectional detection to reduce door hold-open times, thereby enhancing energy efficiency. It features an adjustable detection area of up to 4m in width and 2m in depth when installed at a height of 2.3 metres. The HR900 is equipped with a low-power 24GHz radar module, ensuring compliance with global standards, including US FCC 15.245.
Product Code: STR-HOT0314
The Hotron HR900 is a slim automatic door activation sensor utilising microwave technology. Its compact dimensions of 130mm (W) x 45mm (H) x 34mm (D) make it suitable for even the narrowest door operators. The sensor employs unidirectional detection to reduce door hold-open times, thereby enhancing energy efficiency. It features an adjustable detection area of up to 4m in width and 2m in depth when installed at a height of 2.3 metres. The HR900 is equipped with a low-power 24GHz radar module, ensuring compliance with global standards, including US FCC 15.245.
- Activation sensor
- Mounting height: 3.2m
- Conforms to BS EN 16005
- Unidirectional
- Max detection field: 4m W x 2m D @ 2.3m H
- Installation manual
